| Model: | Z41H-16c | Size: | DN15-1000 |
|---|---|---|---|
| Pressure: | 1.6-16mpa | Temperature: | -29-425 |
| Valve Body Material: | WCB | Applicable Medium: | Water And Oil Vapor, Etc |
| Highlight: | solid wedge gate valve,resilient wedge gate valve |
||
Model no. : z41h-16c
through: dn15-1000
pressure: 1.6-16mpa
temperature :-29-425
valve body material :WCB
applicable medium: water and oil vapor, etc
The product specification
Design and manufacture: GB/ t12234-89
Structure length: GB/ t12221-89
Flange face size: JB79GB/ t9112-9131
Inspection and test: JB/ t9092-99gb/t13927-92

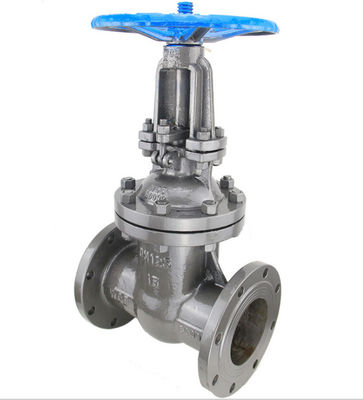

Features of carbon steel flange gate valve:
1. Compact structure, reasonable design, good valve rigidity, smooth channel, small flow resistance coefficient.
2. The sealing surface is made of stainless steel and hard alloy with long service life.
3. Flexible graphite packing, reliable sealing, light and flexible operation.
4. The driving mode is divided into motor, electric, pneumatic and gear transmission. Structure: elastic wedge single ram, rigid wedge single ram and double ram.
5. It is widely applicable to the opening and closing device for connecting or working to cut off the intermediate medium of pipelines in petroleum, chemical industry, thermal power plant and other oil products and steam pipelines.
| Type | Nominal Pressure |
Test Pressure | Working Temperature |
Suitable Medium |
|||
| (Mpa) | (Mpa) | (Mpa) | |||||
| Z41H-16C | 1.6 | 2.4 | 1.8 | 0.6 | ≤425 |
water ,steam, oil vapor, etc
|
|
| Z41H-25C | 2.5 | 3.8 | 2.8 | 0.6 | ≤425 | ||
| Z41H-40C | 4.0 | 6.0 | 4.4 | 0.6 | ≤425 | ||
| Z41H-64C | 6.4 | 9.6 | 7.0 | 0.6 | ≤425 | ||
| MODEL | DN | PN1.6MPa | WT(kg) | |||||||||
| Z40H-16 Z40Y-16 Z40Y-16P Z40Y-16R Z40W-16P Z40W-16R Z40Y-16I Z41H-16 Z41Y-16 Z41Y-16P Z41Y-16R Z41W-16P Z41W-16R Z41Y-16I |
L | D | D1 | D2 | b | f | z-Φd | H | H1 | Do | ||
| 15 | 130 | 95 | 65 | 45 | 14 | 2 | 4-Ф14 | 175 | 240 | 200 | 5 | |
| 20 | 150 | 105 | 75 | 55 | 14 | 2 | 4-Ф14 | 180 | 284 | 200 | 6.5 | |
| 25 | 160 | 115 | 85 | 65 | 14 | 2 | 4-Ф14 | 210 | 303 | 200 | 9 | |
| 32 | 180 | 135 | 100 | 78 | 16 | 2 | 4-Ф18 | 210 | 321 | 200 | 12 | |
| 40 | 200 | 145 | 110 | 85 | 16 | 3 | 4-Ф18 | 350 | 352 | 200 | 26.5 | |
| 50 | 250 | 160 | 125 | 100 | 16 | 3 | 4-Ф18 | 358 | 438 | 240 | 29 | |
| 65 | 265 | 180 | 145 | 120 | 18 | 3 | 4-Ф18 | 375 | 450 | 240 | 33 | |
| 80 | 280 | 195 | 160 | 135 | 20 | 3 | 8-Ф18 | 433 | 528 | 280 | 45 | |
| 100 | 300 | 215 | 180 | 155 | 20 | 3 | 8-Ф18 | 502 | 620 | 320 | 63 | |
| 125 | 325 | 245 | 210 | 185 | 22 | 3 | 8-Ф18 | 612 | 753 | 360 | 108 | |
| 150 | 350 | 280 | 240 | 210 | 24 | 3 | 8-Ф23 | 676 | 847 | 360 | 134 | |
| 200 | 400 | 335 | 295 | 265 | 26 | 3 | 12-Ф23 | 820 | 1039 | 400 | 192 | |
| 250 | 450 | 405 | 355 | 320 | 30 | 3 | 12-Ф25 | 969 | 1245 | 450 | 273 | |
| 300 | 500 | 460 | 410 | 375 | 30 | 4 | 12-Ф25 | 1142 | 1472 | 560 | 379 | |
| 350 | 550 | 520 | 470 | 435 | 34 | 4 | 16-Ф25 | 1280 | 1450 | 640 | 590 | |
| 400 | 600 | 580 | 525 | 485 | 36 | 4 | 16-Ф30 | 1452 | 1887 | 640 | 850 | |
| 450 | 650 | 640 | 585 | 545 | 40 | 4 | 20-Ф30 | 1541 | 2011 | 720 | 907 | |
| 500 | 700 | 705 | 650 | 608 | 44 | 4 | 20-Ф34 | 1676 | 2181 | 720 | 958 | |
| 600 | 800 | 840 | 770 | 718 | 48 | 5 | 20-Ф41 | 1874 | 2346 | 800 | 1112 | |
| 700 | 900 | 910 | 840 | 788 | 50 | 5 | 24-Ф36 | 2000 | 2550 | 900 | 1775 | |
| 800 | 1000 | 1025 | 950 | 898 | 52 | 5 | 24-Ф41 | 2800 | 3560 | 1000 | 2575 | |
| 900 | 1100 | 1125 | 1050 | 998 | 54 | 6 | 28-Ф41 | 3400 | 4005 | 1200 | 3730 | |
| 1000 | 1200 | 1255 | 1170 | 1100 | 56 | 6 | 28-Ф42 | 3800 | 4456 | 1500 | 5400 | |
