Suzhou Ephood Automation Equipment Co., Ltd.
Gas Regulator,Pressure Transmitter,SUFA Water Valve
 |
| Place of Origin: | China |
| Certification: | (DNV)ISO9001,(DNV)ISO14001,CE0035 |
| Model Number: | ZDY641 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD20~500 /PC |
| Packaging Details: | Wooden box, ply-wood box, carton box, pallet |
| Delivery Time: | within 8-12 working days upon receipt of payment |
| Payment Terms: | T/T, Western Union, MoneyGram, L/C |
| Supply Ability: | 500PCS per month |
| Side: | DN50-DN300 | Pressure: | PN10/PN16，150-300 Lb |
|---|---|---|---|
| Valve Body Material: | Cast Iron, Ductile Iron, Carbon Steel, Stainless Steel, Etc | Applicable Medium: | Fresh Water, Sewage, Sea Water, Weak Acid And Alkali, Etc |
| Name: | 2009D Type DN40 (1-1/2") 2-pc CF8M And WCB Screwed End 1000WOG Full Port Pneumatic Ball Valve Specifications -Full Port | Temperature: | -15℃---180℃ |
| Highlight: | pneumatically operated control valve,pneumatic actuator valve,1000WOG Pneumatic Operated Valve |
||

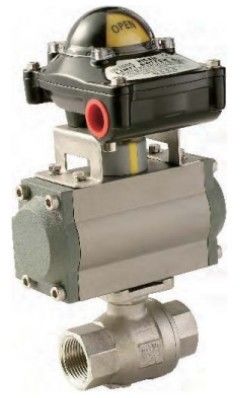

2009D Type DN40 (1-1/2") 2-pc CF8M and WCB Screwed End 1000WOG Full Port Pneumatic Ball Valve Specifications -Full port
Specifications
- Full port 1000wog ball valve
- Blow-out proof stem float ball valve
- Pneumatic Actuator
- Live-loading design
- Full port, 1-1/2” (DN40) 3 piece pneumatic ball valve
- Working Pressure : 1000WOG (PN64)
- Working Temperature: -20°C~200°C(-4ºF~392ºF)
- Investment casting
- Blow-out proof stem
- Live-loading design
- ISO 5211 Diect mounting pad
- Anti-static device
- Socket weld ends conform to ANSI B16.11 & DIN 3239 part2
| Size | DN40—DN100 |
| Nominal Pressure | 1000WOG (PN64) |
| Working Temperature | -20°C~200°C(-4ºF~392ºF) |
| Suitable Medium | Chemicals,air,water,steam,oil,acids,salts,etc |
| Standards: | |
| Design standard | API609 |
| Face to Face | API609,DIN3202,ISO5752 |
| Flange Drilling | DIN2501 PN10/PN16, ANSI125/150,BS4504,JIS10K |
| Top Flange | ISO5211 |
| Test Inspection | API598 |
| Materials: | |
| Body | Cast iron, Ductile iron, WCB,Stainless Steel |
| Disc | Ductile iron/WCB/StainlessSteel+PTFE |
| Stem | Stainless Steel 416, 420,316 |
| Seat | PTFE |
| O Ring | Viton |
| Busing | PTFE,Bronze |
Contact Person: Mr. Barry Wang
Tel: +86-1391-318-7965
Fax: 86-512-66079692
